BROCK VS6/2 PTO edition road sweeper

• Chassis Manufacturer: Scania
• Brush Configuration: Dual-sweep. Suction unit on the right side with one pushed channel brush. Suction unit on the left side with one pushed channel brush. Stepless speed adjustment of the channel brushes. Hydraulic adjustment for the left-hand channel brush (rotatilt). Two-stage coarse material pick-up for left and right sweepgear. Sweepgear works in conjunction with the wide sweep brush. Sweepgear lifted when the reverse gear is selected. Pivoted wide sweep brush. Pressure adjustment of the wide sweep brush. Speed adjustment of the wide sweep brush.
• Water Tank and Pump: Increased water tank capacity to 2,000 litres. (Note: the hopper volume is reduced to 5.2m³) High-pressure water system (Interpump AB90), 60 bar, 90 l/min including pivoted front spray bar.

Full details

BROCK VS7 PTO edition UK 4.1 road sweeper with rear suction unit

• Chassis Manufacturer: Volvo
• Brush Configuration: Dual-sweep. Suction unit on the right side with one pushed channel brush (extendable and retractable). Suction unit on the left side with two pushed channel brushes (extendable and retractable). Stepless speed adjustment of the channel brushes. Two-stage coarse material pick-up for left and right sweepgear. Sweepgear works in conjunction with the wide sweep brush. Sweepgear lifted when the reverse gear is selected. Pivoted wide sweep brush. Pressure adjustment of the wide sweep brush. Speed adjustment of the wide sweep brush.
• Water Tank and Pump: Standard water tank capacity 1,600 litre. 2,000 litre additional water tank with integrated 400 litre, stainless steel, fuel tank located between cab and hopper. High pressure water system (Pratissoli KS 28), 250 bar, 110 l/min. High pressure spray bar behind the wide sweep brush. High pressure cleaning nozzle for the fan.

Full details

Amphitec Vortex

• Chassis Manufacturer: Mercedes-Benz
• High Pressure Pump: Maximum waterflow of 50L/min and a maximum pressure of 120 bar. The installed industrial high-pressure pump is driven by a hydraulic PTO. A manually operated hose storage reel is installed at the rear side of the chassis and is equipped with 20 meter ½“ high-pressure hose. An air pressure connection is located next to the hose reel to be able to empty the hoses to prevent frost damage. Water tank is integrated in the front partition of the tank, approx. 500L. (This option is exclusively possible with a closed filter chamber configuration.)
• Suction Boom: Amphitec 10-inch boom, operated from radio remote controlled, articulated suction hose carrier 6000

Full details

ESE 6 RD 8000 – Mercedes chassis

• Chassis Manufacturer: Mercedes-Benz
• Fan Configuration: High performance twin fan with increased/upgraded performance
• Hose Carrier: Articulated suction hose carrier 6000

Full details

The new ESE 6 RD 8000

• Chassis Manufacturer: Mercedes-Benz
• Fan Configuration: High performance twin fan with increased/upgraded performance
• Hose Carrier: Articulated hose carrier 6000, with two LED work lights, programmed in two stages (slow/fast) and switchable at the rear.

Full details

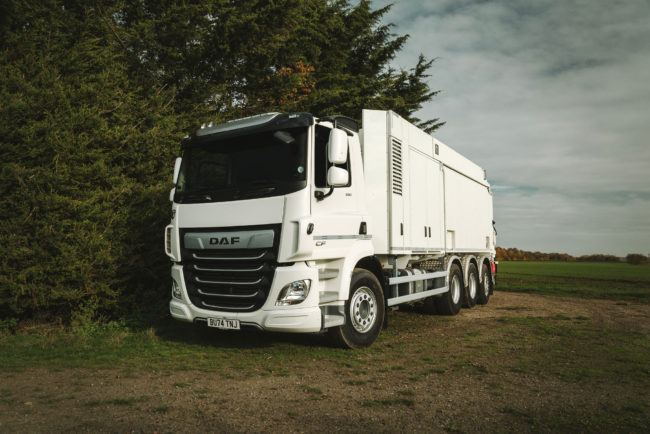

ESE 6 RD 8000/10,000 – DAF chassis

• Chassis Manufacturer: DAF
• Fan Configuration: High-Performance (DV2) Twin Fan
• Hose Carrier: Articulated suction hose carrier 6000

Full details

ESE 4 RS 4000

• Chassis Manufacturer: Mercedes-Benz
• Fan Configuration: High Performance Single Fan
• Hose Carrier: Articulated suction hose carrier 4100

Full details

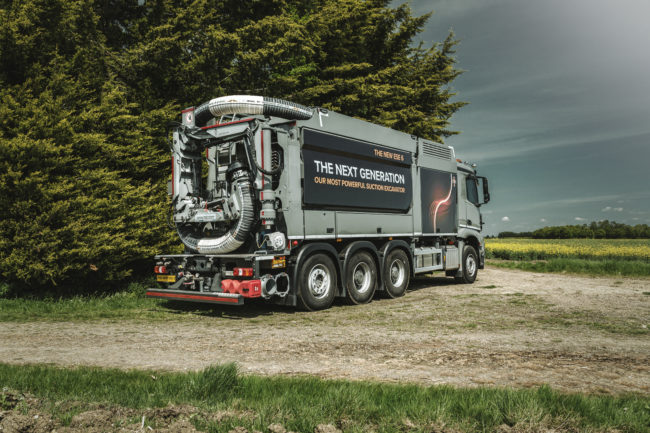

The new next generation ESE 6 RD 8000 (ex-demonstrator)

• Year: 2023
• Chassis Configuration: Arocs 5 3251 8x4x4 LHD
• Fan Configuration: High-Performance (DV2) Twin Fan

Download brochure

ESE 6 RD 8000

• Year: 2022
• Chassis Configuration: Arocs 5 3251 8x4x4 RHD
• Chassis Manufacturer: Mercedes-Benz
• Fan Configuration: High-Performance (DV2) Twin Fan

Download specification & price

ESE 6 RD 8000

• Year: 2021
• Chassis Configuration: Arocs 5 3251 8x4x4 RHD
• Chassis Manufacturer: Mercedes-Benz
• Fan Configuration: High-Performance (DV2) Twin Fan

Download specification & price

ESE 6 RD 6000 suction excavator fitted with breaker boom

• Year: 2021
• Chassis Configuration: Arocs 5 3351L 8x4x4 RHD
• Chassis Manufacturer: Mercedes-Benz
• Fan Configuration: High-Performance (DV2) Twin Fan

Download specification & price

ESE 3 RS1100 CITY SUCKER

• Year: 2013
• Chassis Configuration: Atego 1324 4x2
• Chassis Manufacturer: Mercedes-Benz
• Fan Configuration: High Performance Single Fan

Download specification & price

ESE 1

• Fan Configuration: Hydraulically driven single fan

ESE 1 RSP suction excavator driven by a diesel engine on a track driven undercarriage (rubber tracks). Fitted with a 200mm diameter suction hose, 4.7m long.

Download specification & price
